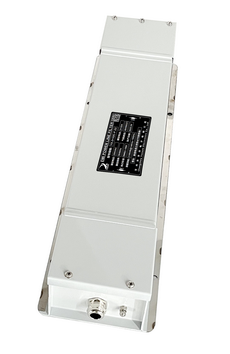

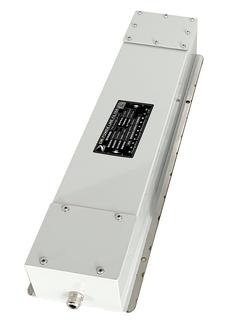

特 點 Features

● 金屬殼體采用特殊的不銹鋼材質，機械強度高，耐腐蝕性強。

The metal shell is made of special stainless steel with high mechanical strength and strong corrosion resistance.

● 獨特的接線結構設計，進線和出線可分別在打開的屏蔽腔體內接線，方便又安全。

Unique wiring structure design, the incoming line and outgoing line can be connected in the open shielding cavity respectively, which is convenient and safe.

● 單相兩線、三相四線制、直流兩線/三線電源濾波器。

Single phase two wire, three-phase four wire, DC two wire / three wire power filter.

● 體積緊湊，壓降低，漏電流小。Compact size, low voltage and low leakage current.

應 用 Application

● 電波暗室、屏蔽房、電子方艙和機柜等設施的專用配套，能有效的抑制輻射干擾。

The special supporting facilities of anechoic chamber, shielding room, electronic shelter and cabinet can effectively suppress radiation interference.

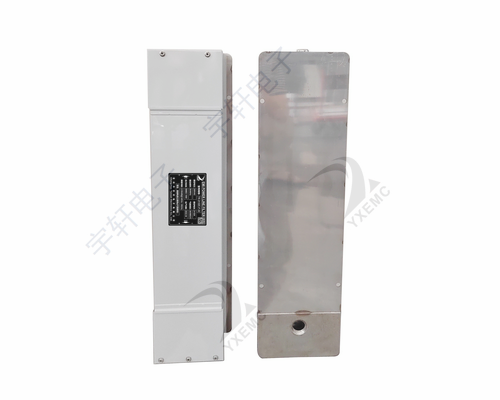

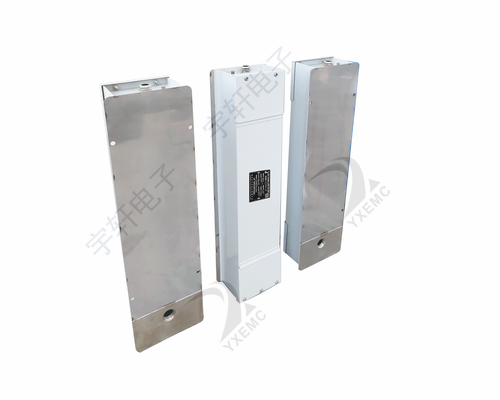

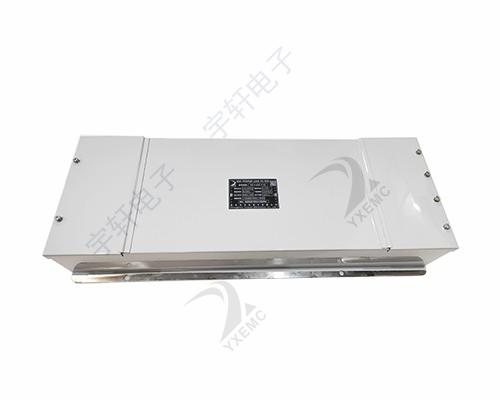

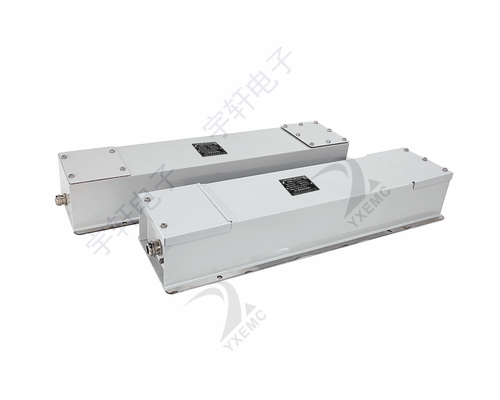

-11全螺栓式開蓋 -22壓板式開蓋

性能指標 Characteristcs

單相產品型號表 Filter Table 注：零地電壓為0V Note: N-G voltage is 0V

三相產品型號表 Filter Table 注：零地電壓為0V Note: N-G voltage is 0V

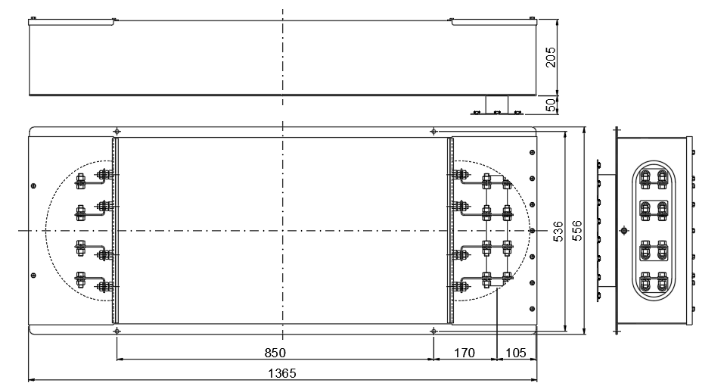

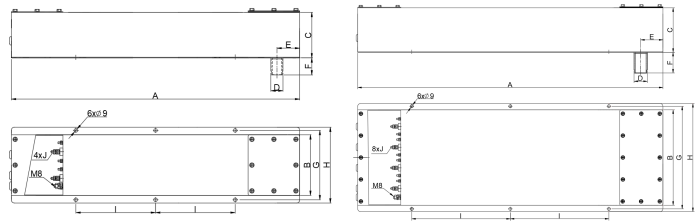

外形尺寸圖 Outline Drawing : mm

Fig.1~Fig.5Fig.6~Fig.8

Fig.9

Fig.10

注：此結構殼體可用于EMC實驗室、400Hz、直流、EMP電源濾波器，具體參數請咨詢公司工程部
